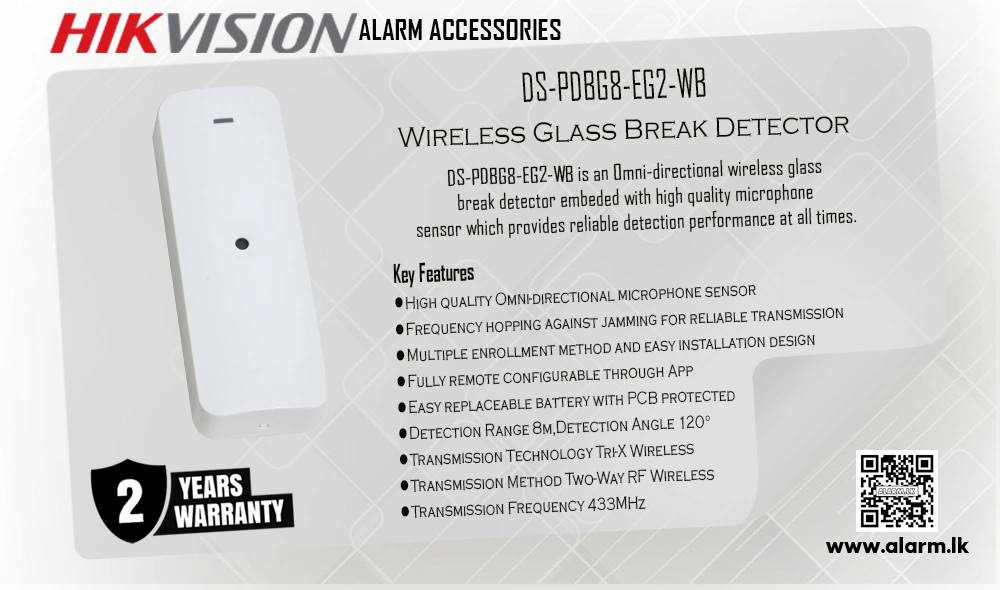

DS-PDBG8-EG2-WB

Datasheet: DS-PDBG8-EG2-WB

Quick Start Guide: DS-PDBG8-EG2-WB

User Manual: DS-PDBG8-EG2-WB

Detection

• Method: Acoustic Sensor
• Range: 8m
• Angle: 120°

Detection Performance

• Sensitivity: 2m;4m;6m;8m
• Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
• Glass Thickness: 2.4mm to 6.4mm
• Glass Size: 0.3m x 0.3m to 3m x 3m

Feature

• Digital Processing: Support
• Tamper Protection: Front;Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed;Normally Open;Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Blue(Alarm)

Transmission

• Technology: Tri-X Wireless
• Method: Two-Way RF Wireless
• Frequency: 433MHz
• Security: AES-128 Encryption
• Range(Free Space): 1Km
• Frequency Hopping: Support
• Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

• Power Supply: Battery Powered
• Battery Type: CR123A × 2
• Typical Voltage: 3V
• Standard Battery Life: 5 years in work status (being triggered 20 times per day)

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension(WxHxD): 38.8mm × 107.0mm × 24.5mm
• Weight: 83g
• Mounting Method: Wall;Ceiling
• Application Scenario: Indoor
