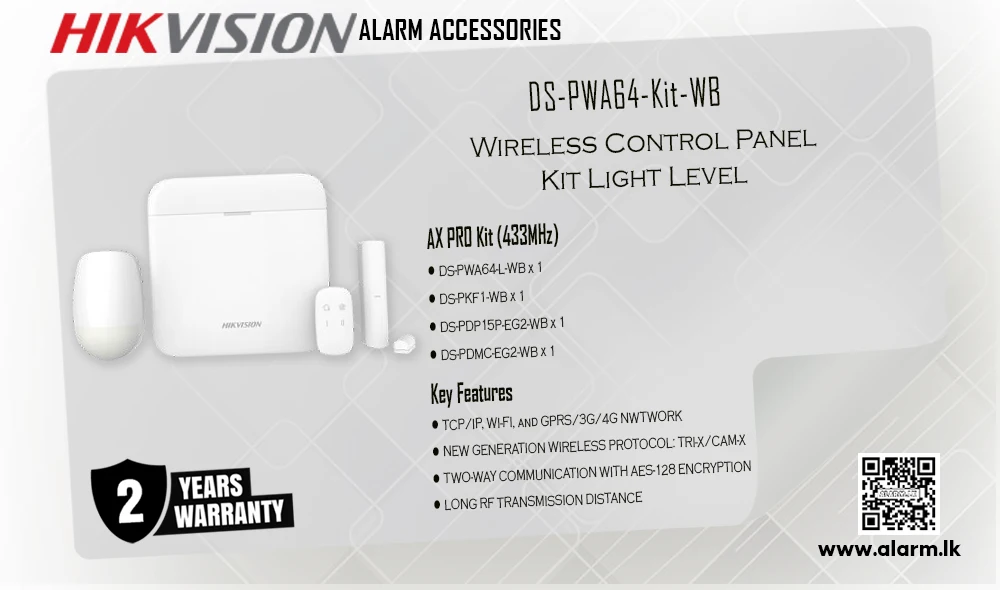

DS-PWA64-Kit-WB

Datasheet: DS-PWA64-Kit-WB

User Manual: DS-PWA64-Kit-WB

Quick Start Guide: DS-PWA64-Kit-WB

Software Features

• Tag: 32
• Area: 16
• Zones: 64 (up to 48 PIRCAMs)
• Installer: 1
• User: 30
• Admin: 1
• Voice Prompt: Supported
• Loudspeaker Built In: Supported
• Memory Log Stored: 5000
• Programming Tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Firmware Upgrade: APP/Web Portal
• Arm Modes: Away/Stay
• Automatic Arm/Disarm Timers: Supported
• Forced Arming With Open Zones: Supported
• Diagnostics Via The APP Or Web: Supported
• ARC Protocol
  • SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
  • Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

    Supports video verification and remote control

• User APP For Operating: Supported
• Installer APP For Programming: Supported
• Web Server For Maintenance (Offline Configuration): Supported

Hardware Features

• RS232 Output: Supported
• SIM Slot: Single

RF Transmission

• RF Frequency: 433Mhz
• Wireless Security: Frequency Hoping 128 AES Encryption
• GPRS On Board: Supported

Electrical Characteristics

• Power Supply: Built in power supply
• Battery Type: Built in on board Battery Li
• Battery Life Span: 12 hours

Wireless Transmission

• Wired Network: Supported
• Wi-Fi Standard: Supported

Display

• LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Operation Temperature: -10 °C to +55 °C
• Shell Material: Plastic
• Dimension(WxHxD): 170.0 mm (6.7″) x 170.0 (6.7″) mm x 38.6 mm (1.5″)
• Weight: 557.5 g(19.7 oz)
• Color: White

Device Management

• Keyfob: 32
• Wireless Sounder: 4
• Keypad: 8 (Including Tag reader)
• Wireless Repeater: 2
• PIR Cam: Supported
